Inserting Machine

Details

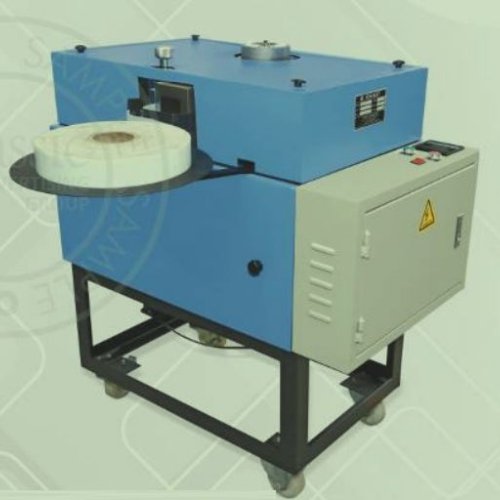

• We manufacture and supply extremely cheap and best slot cell or wedge paper inserting machine.
• This machine is specially designed for insulation paper of ceiling fan and motor stators.
• All procedure actions are done by the machine automatically except to put on and take off stator.
• The production cost will be highly reduced by decreasing the material loss and labor cost.
• This machine is specially designed for 24” & 36″ with micro controller.

Controllers Features

• The complete inserting time for 16 poles stator can be shortned to 6sec/ stator .
• High insertion speed is about 0.5 sec/ slot for labor saving, cost reduction, and stable quality output.
• Easy adjustment while changing stack height of stator or width of insulating paper.
• Change tooling design to meet different shape of stator slots.

Details

• This machine is specially designed for automatic coil & wedge inserting purpose.
• In this machine wedge is inserted automatically in accordance with stack height of stator.
• The production cost will be highly reduced by decreasing the material loss and labor cost.

Controllers Features

• In this machine coil can be inserted automatically with one pass in compliance with specification of winding by transfer.
• This machine is easy and quick to change tool according to stack height of stator.
• Change different tool to meet different kinds of stator.

Details

• We manufacture and supply extremely cheap and best insulation paper inserting machine.
• This machine is specially designed for insulation paper of ceiling fan motor staror.
• All procedure actions are done by the machine automatically except to put on and take off stator.
• The production cost will be highly reduced by decreasing the material loss labor cost.

Controllers Features

• The complete inserting time for 16 poles stator can be shortened to 8sec/stator.
• High insertion speed is about 0.5 sec/slot for labor saving, cost reduction, and stable qulaity output.
• Easy adjustment while changing stack height of stator or width of insulating paper.
• Change tooling design to meet different shape of stator slots.

Details

• This machine is specially designed for automatic slot cell paper insertion of medium and small size stator.
• The complete inserting time for 24 slots stator can be shortened to 8 sec/ stator.
• The production cost will be highly reduced by decreasing the material loss and labor cost.

Controllers Features

• All procedures are done by the machine
• Automatically except to put on and take off stator.
• Highinsertion speed (about to 0.5 sec/slot), labor saving, cost reduction, and stable quality output.
• Easy adjustment while changing stack height of stator or width of insulating paper.
• Change tooling design to meet different shape of stator slots.

Details

• We manufacture and supply extremely cheap and best slot cell or wedge paper inserting machine.
• This machine is specially designed for insulation paper of ceiling fan and motor stators.
• All procedure actions are done by the machine automatically except to put on and take off stator.
• The production cost will be highly reduced by decreasing the material loss and labor cost.

Controllers Features

• The complete inserting time for 16 poles stator can be shortened to 6 sec/stator.
• High insertion speed is about 0.5 sec/slot for labor saving, cost reduction and stable quality output.
• Easy adjustment while changing stack height of stator or width of insulating paper.
• Change tooling design to meet different shape of stator slots.
• Power Input 220V AC 50 Hz to 60 Hz.
