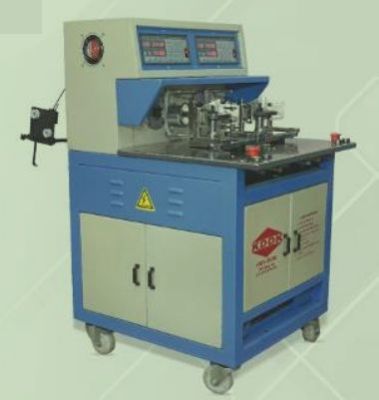

CNC Dual Drive Ceiling Fan Motor Winding Machine

CNC Dual Drive Ceiling Fan Motor Winding Machine

Product Details

No of Spendle 2
Wire Size SWG 37- SWG 29
Startor Diameter 35 Mm to 180 Mm
Startor Thickness 8 Mm to 36 Mm
Reverse Motor 100mm
Max. Speed 10-4500 Rpm
Power Source 200v – 50 Hz
Main Motor A/C 1HP X 2
Tarverse Motor Stepping Motors
Dimension 600x750x750 mm
Net Weight 250 KG
Gross Weight 290 KG
Output 45 pcs/hr 12 POLE(depending on No. of coils and No. of terms.)


  • We manufacture and supply extreme quality Ceiling Fan Winding Machine Dual Drive that is available in different specifications.
  • We are renowned in many electrical products manufacturing industries for providing high tensile strength & excellent functioning Winding Machine.
  • In this machine each head have individually independent controller & two different winding are done at one time.
  • We do complete quality checking of these Winding Machines at various levels of production as to ensure exact specification and high durability with robust performance.

Controllers Features

  • Microprocessor makes easy to data setting and operating, and it has 999 programmes, storing memory capacity.
  • Nine winding parameter and five option makes it widely use.
  • Three display units make the display during setting and running.
  • Winding speed can be specified by using the front panel keypad, resulting in easy programming of multi-step, multi-speed settings.
  • On this machine BLDC motor are also winding.
