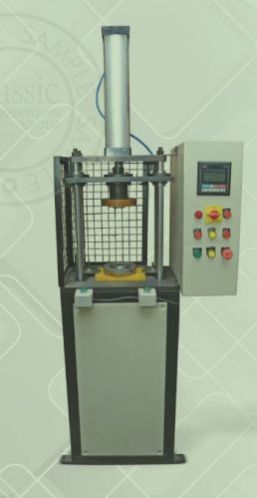

Final Shaping Machine

Final Shaping Machine

Product Details

Stator Stack Height 10mm-150mm
Min. stator I.D 30mm
Max. stator O.D 20mm
Power Supply 3 Ph, 380v AC, 50 Hz
Power 5HP
Net Weight 550 KG
Dimension 630 x 600 x 2000 mm
Operation Method Hydraulic Based


  • This machine is specially designed for Coil forming purpose.

  • The machine is suitable for forming up the small to medium size stator coil.

  • This machine is especially suitable for the difficult rearrangement of 2 poles, 4poles, 6 poles coil shaping.

  • The production cost will be highly reduced by decreasing the material loss and labor cost.

Controllers Features

  • Using upper, lower and center axis molds, this machine can not only rearrange the outlook of tone coil, but also fit the sizing rearrangement.

  • Vertical design minimizes the space requirement.

  • One step operation.

  • Molds are applicable to different stack height of stators.
