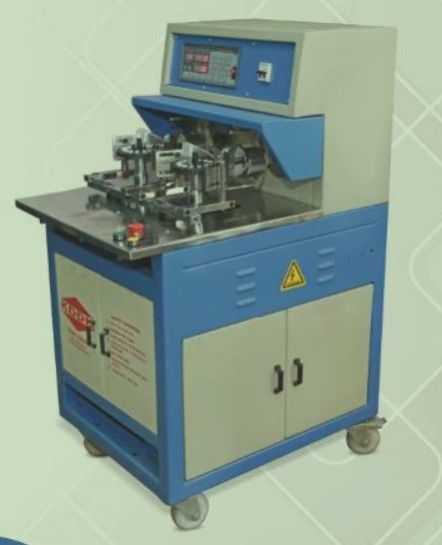

Automatic Single Sided Coil Lacing Machine

Automatic Single Sided Coil Lacing Machine

Product Details

Stator Stack Height 10mm – 100mm
Max. stator O.D 130mm
Stator I.D range 130mm – 90mm
Height of edge folded 2mm – 5mm
Max. Thickness of Insulation Paper 0.15mm – 0.3mm
Paper Feeding Length 12 mm – 50mm
Tact time 0.4 – 0.5 s/slot
Power Supply 3Ph, 380 v AC, 50Hz
Power 3Ph, 50Hz
Dimension 800 x 550 x 900 mm
Net Weight 280KG


  • This machine is specially designed for automatic slot cell paper insertion of medium and small size stator.

  • The complete inserting time for 24 slots stator can be shortened to 8 sec/ stator.

  • The production cost will be highly reduced by decreasing the material loss and labor cost.

Controllers Features

  • All procedures are done by the machine

  • Automatically except to put on and take off stator.

  • Highinsertion speed (about to 0.5 sec/slot), labor saving, cost reduction, and stable quality output.

  • Easy adjustment while changing stack height of stator or width of insulating paper.

  • Change tooling design to meet different shape of stator slots.
